A social-first arcade ecosystem connecting physical play with digital loyalty.
← Back to work
Arcades are inherently social — people go to compete, show off, and share moments. But once players leave the arcade, that experience evaporates. There's no digital thread connecting the physical gameplay to a wider community, no persistent identity, and no reason to return.
If we give arcade-goers a seamless way to log scores, connect with other players, and unlock achievements through a mobile companion app, we can bridge the gap between physical and digital play — creating habitual engagement beyond the arcade visit itself.
How might we bridge the gap between physical arcade entertainment and digital user engagement?
Eliminate friction in user onboarding and create a social-first gaming environment that rewards long-term loyalty.

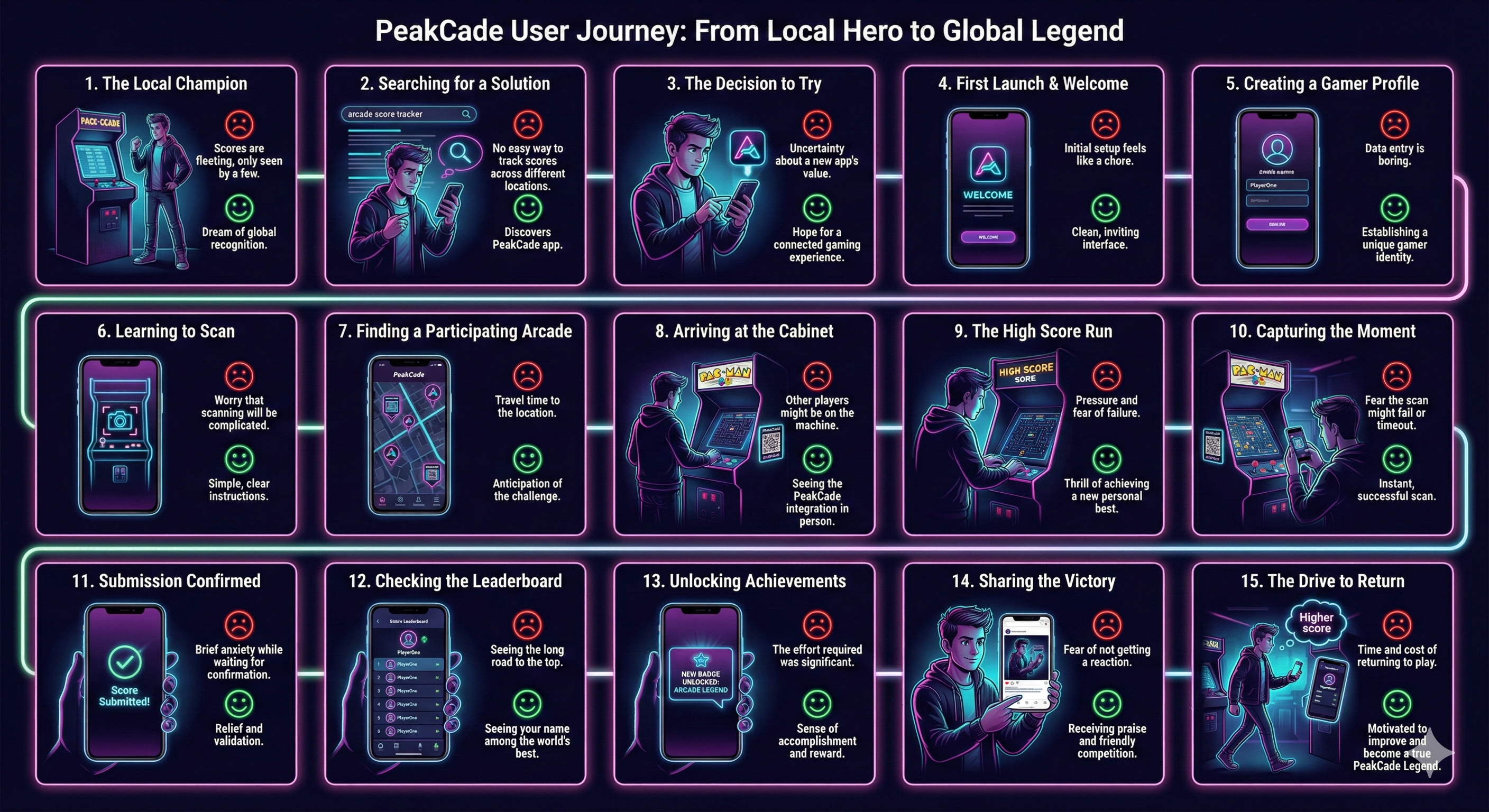

Before wireframing, I mapped the end-to-end experience across 15 user touchpoints — from first hearing about PeakCade through discovery, download, onboarding, first play, and return visits. Each step surfaced a friction point or emotional peak that became a design constraint.
Reviewed four competitors in the gaming loyalty and social play space to identify gaps PeakCade could own.
Existing apps focus on mobile gaming only — none connect to physical arcade cabinets via QR or NFC.
Competitors required 5–7 steps before a user could log their first score. Players abandoned before completing setup.
Leaderboards existed but were isolated — no friend activity, shared moments, or community challenges to drive return visits.
Points systems existed but weren't tied to social status or progression — no emotional incentive to keep playing.

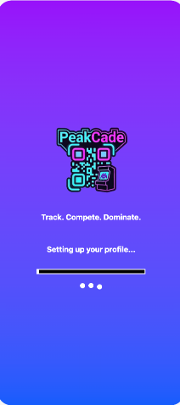

The emblem combines a QR code with an arcade cabinet silhouette and neon glow effects. The QR code is both functional and symbolic — it's the literal bridge between the physical arcade cabinet and the digital app, designed to be scanned in-venue to log scores instantly.
Cyan and magenta were chosen to mirror the electric atmosphere of an arcade environment — two complementary neon colors that feel energetic and retro-futuristic simultaneously.

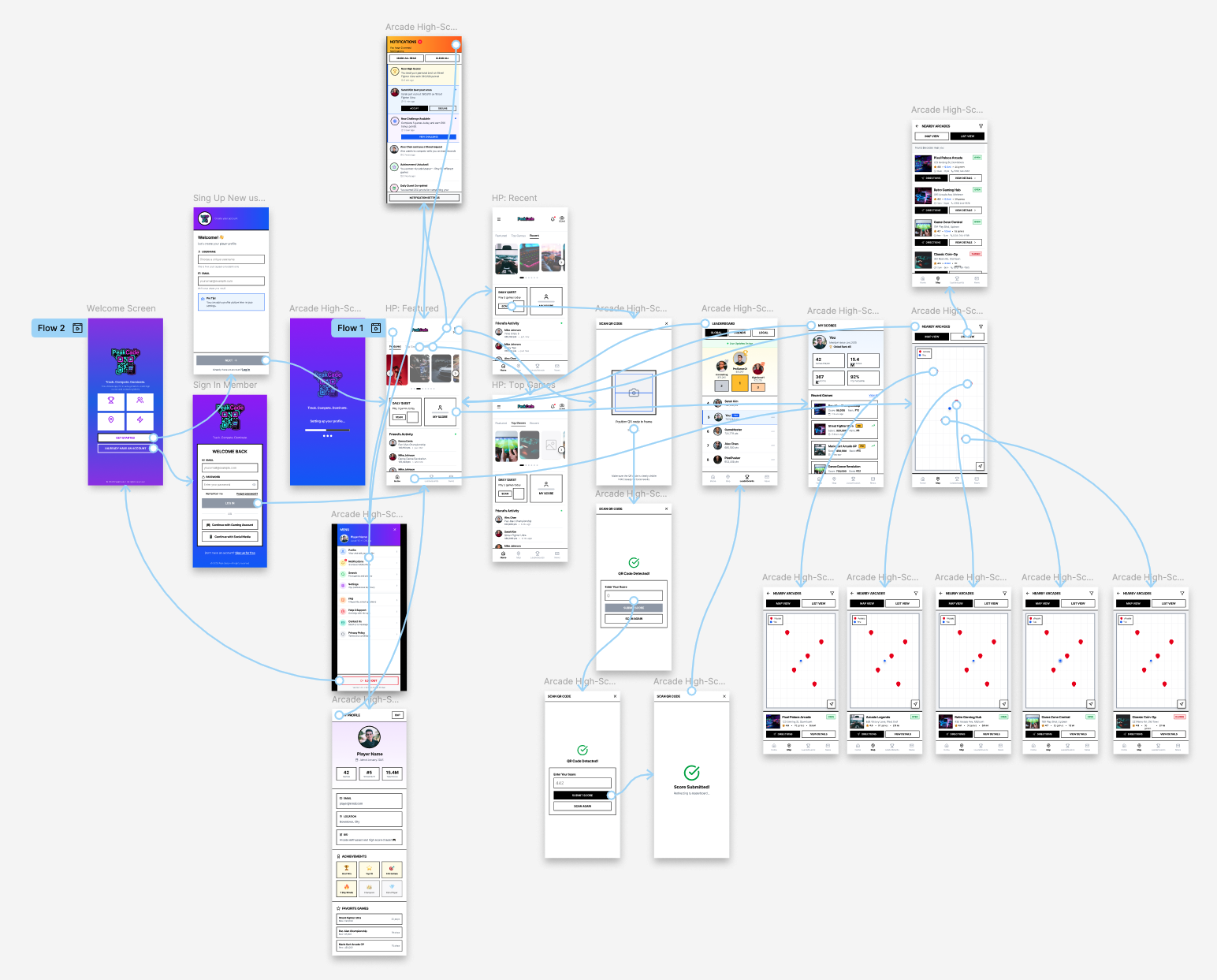

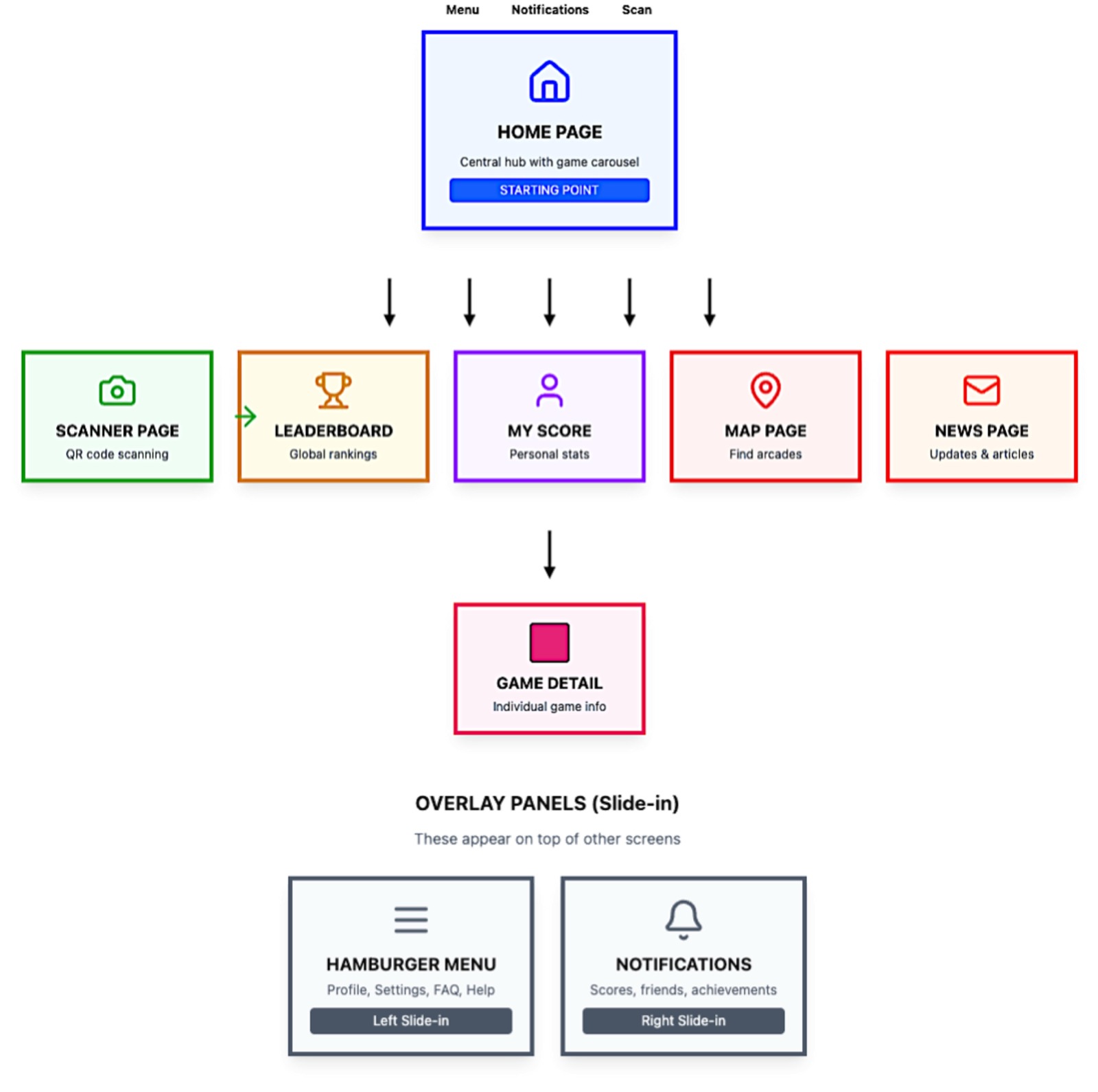

With 15 journey stages mapped, I designed the information architecture using a hub-and-spoke model with one strict rule: no feature more than three taps from home. This constraint forced clarity and surfaced the most important actions to primary navigation.

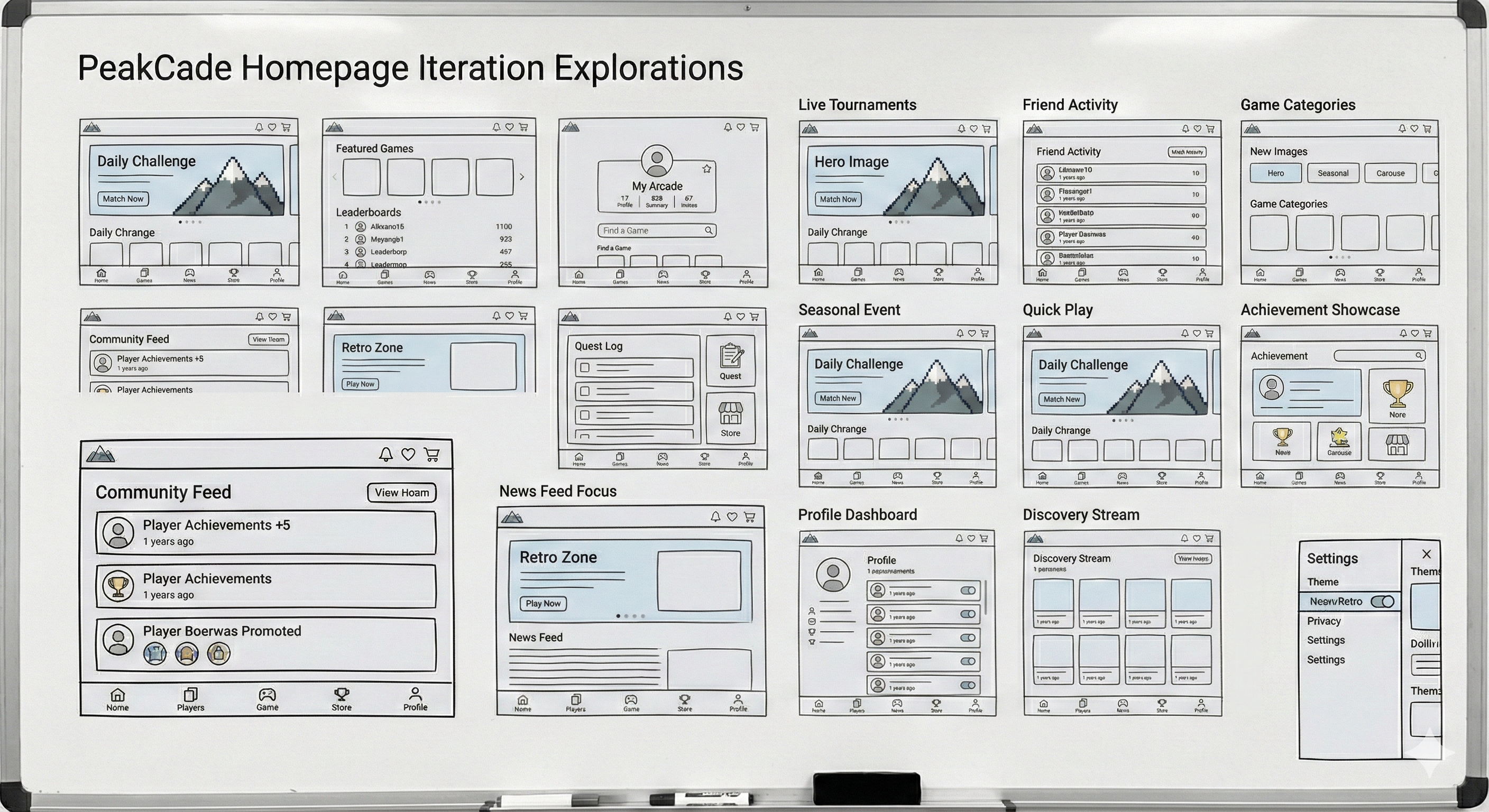

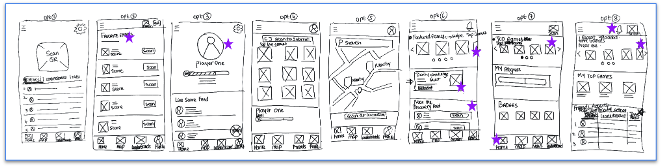

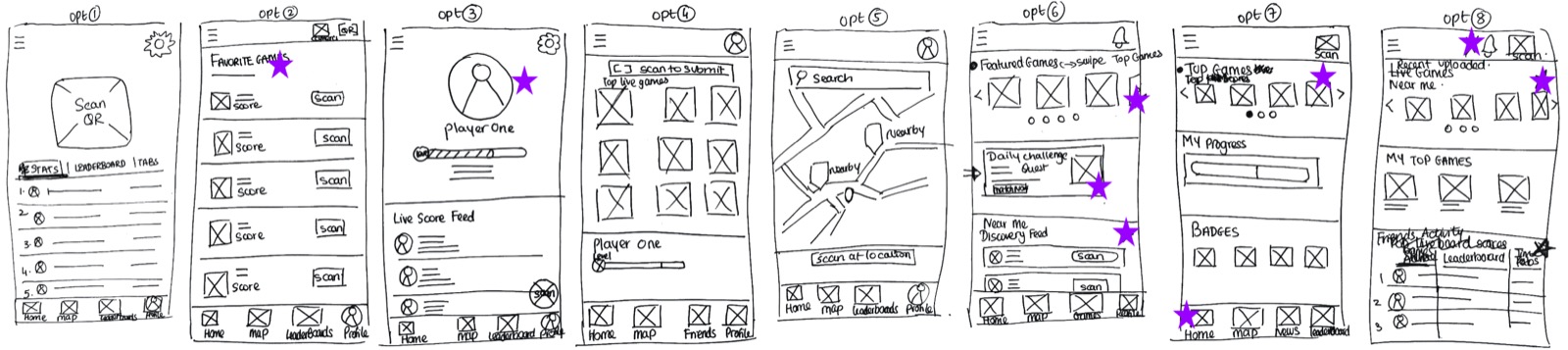

The homepage design went through 40+ iterations. Starting from paper sketches, I explored multiple layout paradigms — community feed first, leaderboard first, discovery-first — before landing on a Daily Quest hook that creates an immediate reason to open the app.

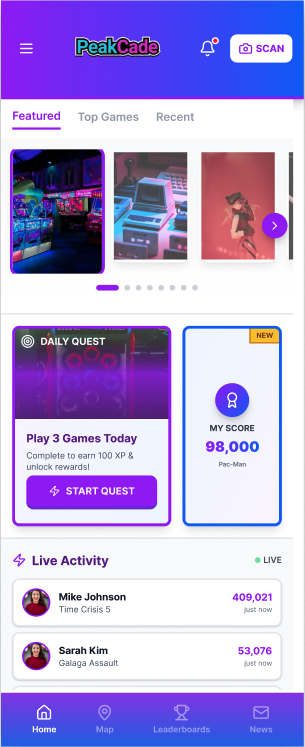

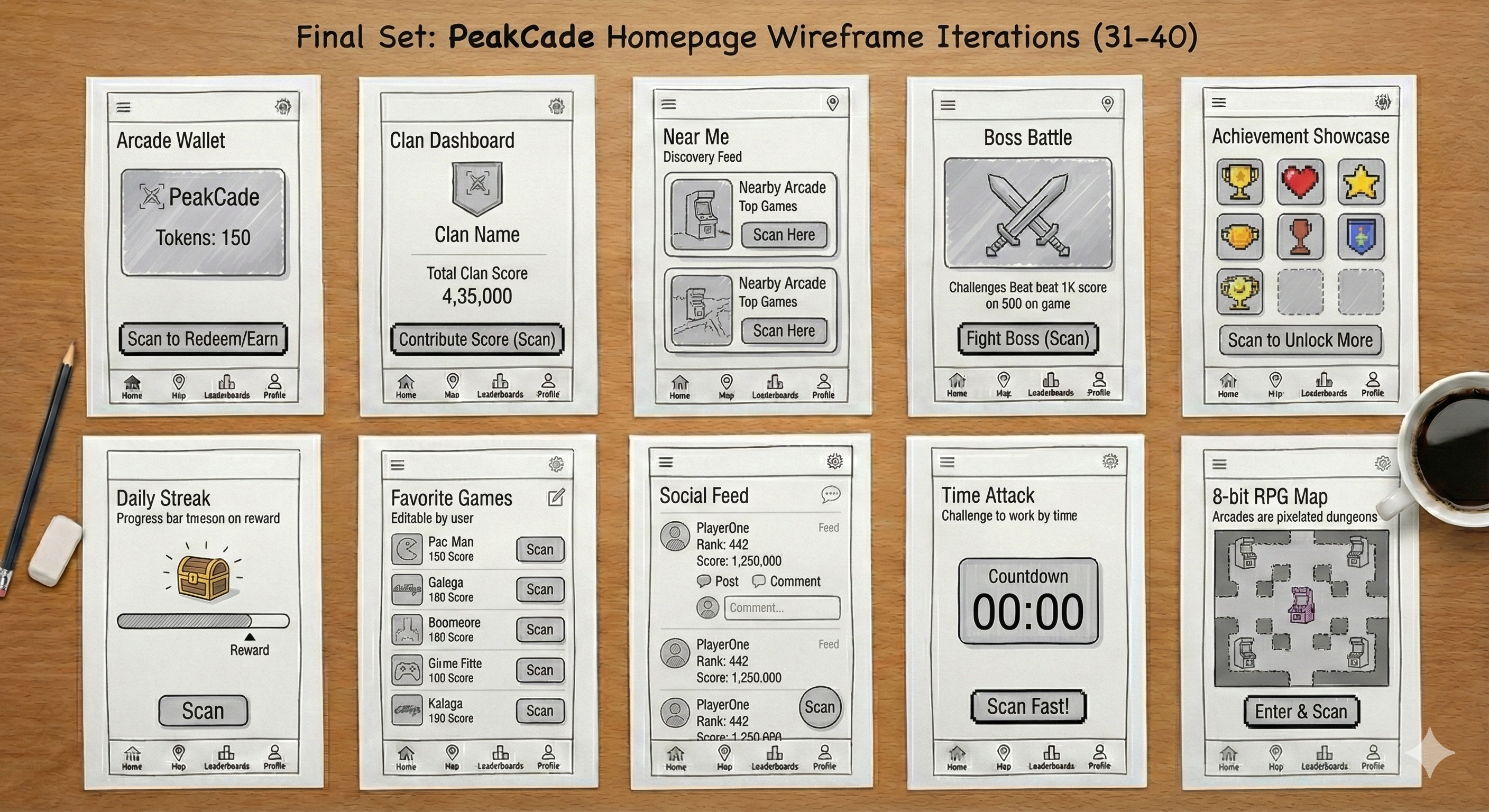

The final wireframe set (iterations 31–40) refined the information hierarchy — Daily Quest card above the fold, score display adjacent, and Live Activity below. The Scan button was elevated to a persistent top-bar action after usability testing showed it was buried in earlier versions.

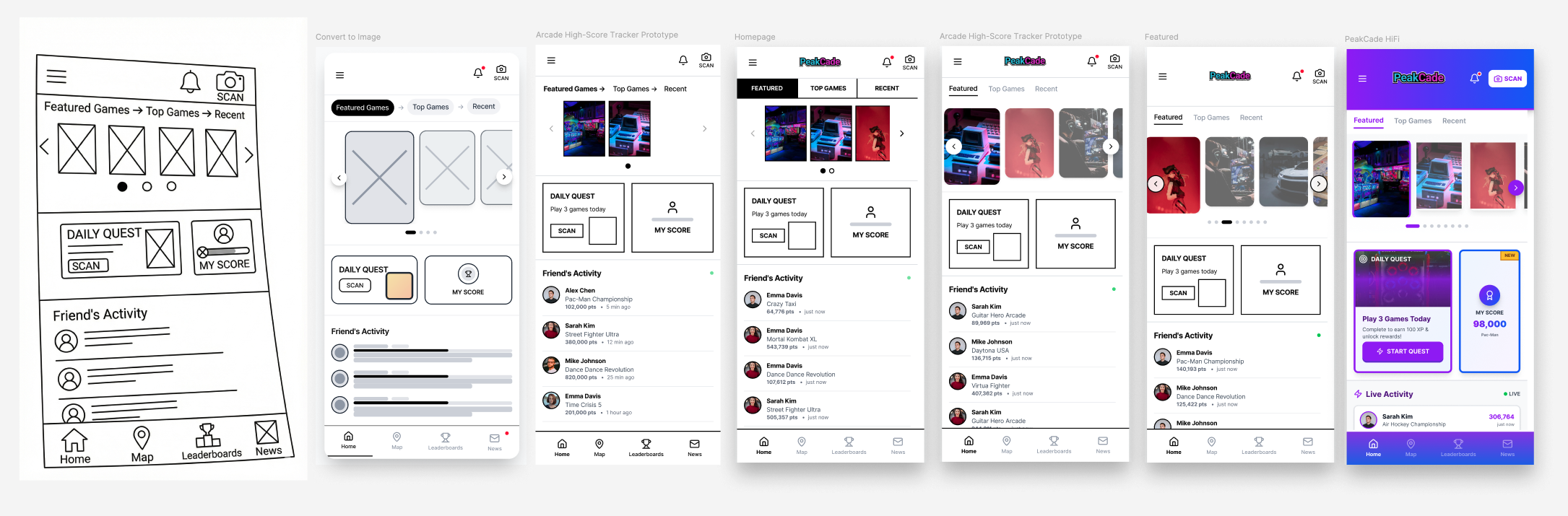

The design evolved across three fidelity levels. Each level answered different questions — lo-fi tested structure and flow, mid-fi tested information hierarchy, and hi-fi validated brand feel and micro-interactions.
Two critical issues surfaced before hi-fi polish was applied:
The social feed and the global leaderboard competed for the same visual zone, causing users to pause and re-orient on every visit.
Fix → Separated into distinct tabs (Friends · Leaderboards) with the social feed as the default landing state.
The QR scan — the core action bridging physical arcade to app — was 3 taps deep. Users didn't discover it until the fourth session.
Fix → Elevated to a persistent button in the top nav bar, visible on every screen.

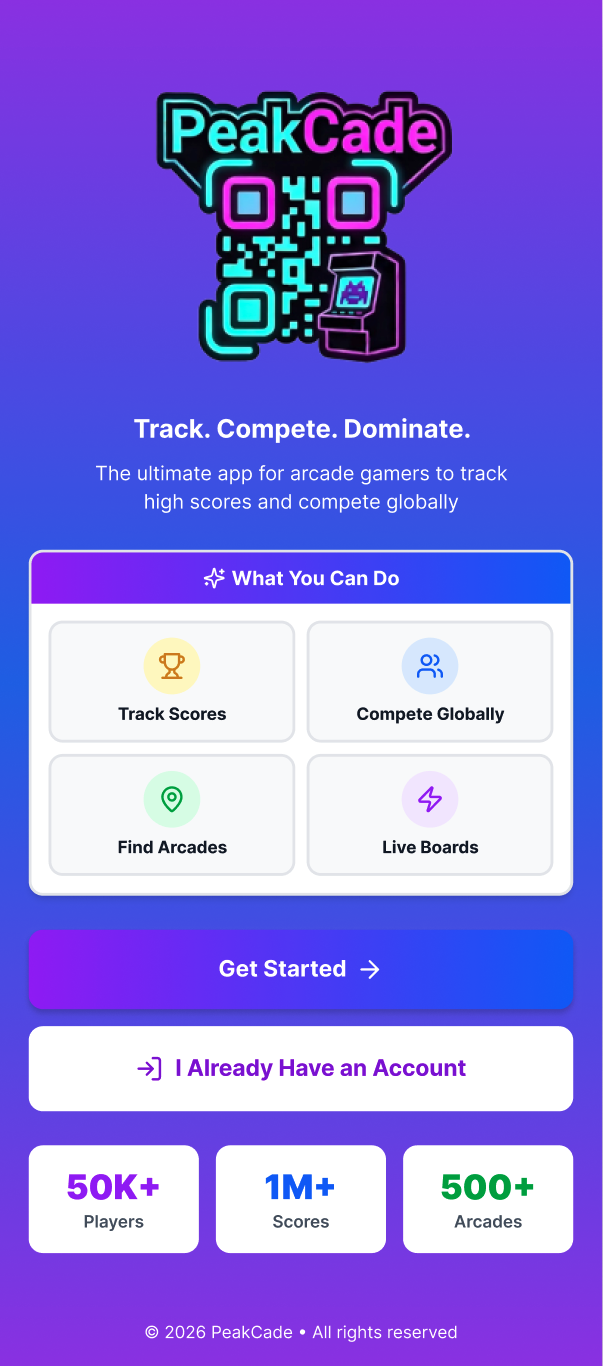

With structure validated, the full brand identity was applied: neon-noir visual language, high-contrast arcade typography, and motion cues that echo the excitement of physical play.
Starting with a 15-step journey map anchored every design decision in user reality. When stakeholders asked "why is X here?", there was always a journey stage to point to. Structure before aesthetics prevents aesthetic churn.
The QR scan CTA lesson was the most valuable: the feature that is most central to the product's value proposition needs the most prominent placement — even when that feels visually heavy. Don't bury the core action.
Deeper social features — arcade squad challenges, group leaderboards, and in-app messaging between arcade regulars — would strengthen the "social-first" promise. The current design lays the foundation; the next phase builds the community layer.
"Starting with a 15-step journey map ensured that the high-fidelity UI was built on a foundation of user needs, not just aesthetics."
